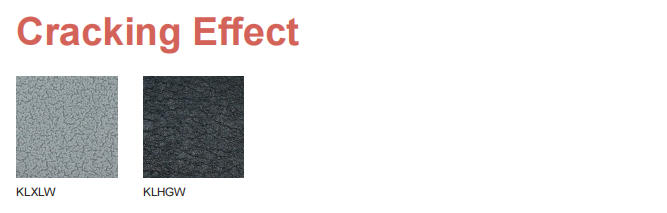

Crackle powder coatings

Crackle powder coatings utilize changes in factors such as the melt viscosity, surface tension, and curing speed of the powder coating during the baking and curing process, which cause the coating surface to shrink, thereby forming the crackle effect. Common methods to achieve cracking include increasing the filler content or reducing the binder content. Fillers with higher oil absorption are typically selected to inhibit the normal flow of the resin during film formation. This prevents the resin from fully encapsulating the pigment and filler particles, or allows only partial encapsulation, leaving gaps between the particles. Without sufficient resin to fill these gaps, a three-dimensional structure with pigment and filler as the framework is ultimately formed, revealing the primer color at the crack locations.

Different base powder systems produce different types of cracks. For instance, to achieve clear, visible cracks over a larger area, resins with lower viscosity should be selected, as this enhances flowability. Within the same system, the pigment and filler content influences the size and shape of the cracks. Generally, as the pigment and filler content increases, the cracks transition from coarse and large to relatively fine.

Thanks to their unique vintage, distressed, and artistic appearance, crackle powder coatings are widely used in metal furniture, lighting fixtures, decorative crafts, toys, appliance housings, automotive and motorcycle parts, architectural hardware, and interior decorations. Their natural crackle texture enhances the visual depth and design appeal of products. Simultaneously, the coating offers advantages such as corrosion resistance, wear resistance, and environmental friendliness. Suitable for various substrates, these coatings provide products with higher decorative value and durable performance.

Detailed Information

Advantages of Crackle Powder Coatings

1.Unique Decorative Effect

• Features natural crackle patterns that create vintage, aged, or artistic styles, enhancing the product’s visual appeal.

2.High Customizability

• Crackle size, density, and style can be adjusted through formulation, film thickness, and curing conditions to meet personalized design needs.

3.Excellent Durability

• Provides strong resistance to corrosion, abrasion, and weathering, effectively protecting the substrate and extending product lifespan.

4.Wide Applicability

• Suitable for various substrates such as metal, wood, and glass, widely used in furniture, decorative items, appliances, and automotive components.

5.Environmentally Friendly Coating

• Contains no VOCs and emits no solvents, making the coating process safe and environmentally compliant.

6.Strong Three-Dimensional Texture

• The filler-based crack structure creates a pronounced 3D texture, offering rich surface depth and visual impact.

Classification and Typical Applications

Package and Storage

25 kgs/box, dry ventilation conditions below 30℃.

Feel free to contact us for customized products‘ specification and package
